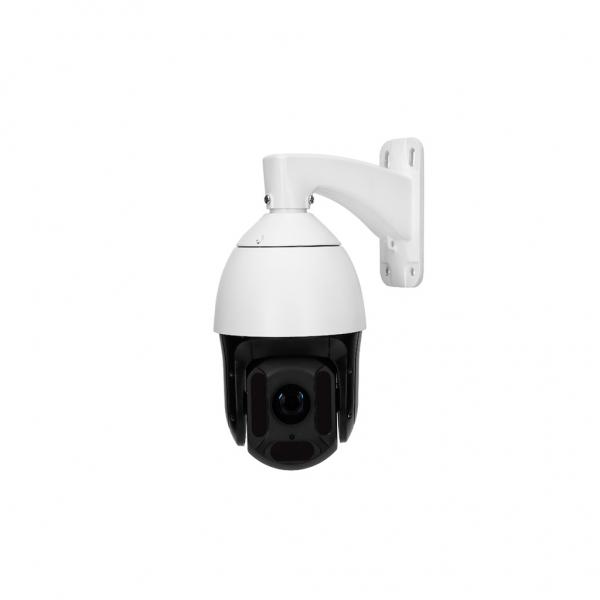

OMV-ZP64S-2

•4 в 1(AHD&TVI&CVI &CVBS/1080P CVBS/960H)
•PTZ NXT2441H+IMX323 1080P,
•5.35-93.6mm 18X

Pan & Tilt
Manual speed	Pan（0.1°～200°/s）
	Tilt（0.1°～180°/s）
Rotation	Pan continuously 360°, tilt 0～90° with auto-flip
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable, 4 scan
Pattern	4 patterns, and each record time is not less than 180s
Tour	4 tour, and speed & park time of presets can be set.
Idlle run	tour/preset/pattern/scan can be set
Power up run	tour/preset/pattern/scan can be set
CAM SPEC
sensor	NVP2441H+IMX323
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
OPTICS	Optical x20, f = 4.7 mm ~ 94 mm
Angle	Appr. 55.2°(Wide) to 3.2°(Tele)
Auto Focus	Auto / Semi-automatic / Manual
Zoom Speed	Approx.3.0s(Optical Wide-Tele)
Min. Illumination	Color : 0.5 lux , BW : 0.1lux
S/N (Y signal)	52dB
White Balance	Auto
ICR	Manual/Auto
DNR	Auto / Off / Low / Middle / High
HLC	Off / On
Max Gain	Auto
IRIS	Auto
FLIP	Vertical , Horizontal ,Vertical-Horizontal,OFF Selectable
IR
IR irradiation distance	100m
IR irradiation angle	Adjustable by zoom
General
Romote controlling	RS485,UTC
Baud rate (RS485)	2400／4800／9600/19200 bps
ID range	1-254(software add.)
Output	AHD&TVI&CVI &CVBS/1080P CVBS/960H
Power consumption	9W/35W(IR_LED ON)
Power supply	DC 24V 2A
Temperature	-10℃～+50℃
Installation	Wall installation, ceiling installation, ceiling type installation
Net weight	2.7kg
Size	Product size 374×185mm， Packing size Packing size 300×300×460mm
Protection Level:	IP66 standard (outdoor dome)
	TVS lightning protection, surge protection and voltage transient protection

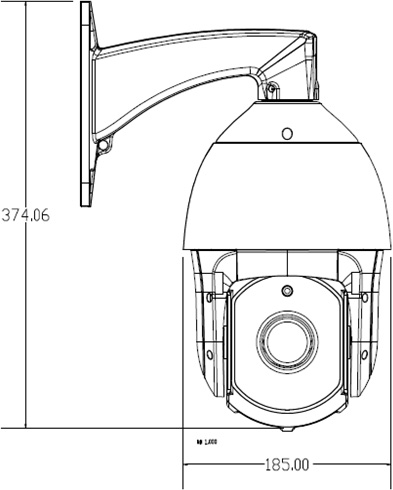

Demensions OMV-ZP64N-E-2

Demensions OMV-ZP64N-E-2
