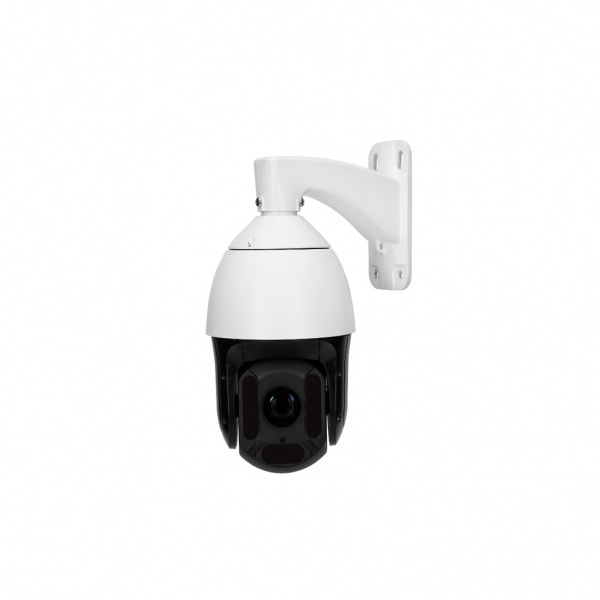

OMV-ZP64N-E

• 1/2.7",HIS3516D+4689 4M
• H.265/H.264 / MJPEG
• Max 2304x1296@30fps
• 10x Optical Zoom
• Onvif 2.4 Ver.
• -20℃～+60℃
• DC24V/2.7A

Features:

  • Pan continuously 360° rotate, tilt 90° rotation with auto-flip
  • Horizontal Speed（0.1°～220°/s）, Vertical Speed（0.1°～180°/s）
  • IR range：more than 100 m, constant current control, synchronous switch
  • Humanize focus and speed proportion
  • 128 presets (titles can be set);
  • Tour is based on presets, speed & park time of presets can be set.
  • 4 scan, support scanning between left limit and right limit at an appointed speed.
  • presets, tour, scan, pattern, camera mode and display name etc.
  • Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
  • Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
  • Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing
  • Built-in TVS wave-proof.IP66

Specifications:

Sensor1/2.7",HIS3516D+4689
4M
Scanning SystemProgressive
Angle68°/ 6.7°(Wide-Tele)
LensFocal length 4.7-84.6mm,18X
Zoom10x Optical Zoom
Min. Illumination0.02LUX
IrisAuto
White BalanceAuto/Manual/indoor/outdoor
IRcf ControlAuto* / Manu (soft)
Focus Length~1.0m(tele)~0.01m(wide)
Signal ProcessHIS3516D
White BalanceAuto* / Manu (R Gain/B Gain, Level: UP~DOWN)
IRcf ControlAuto* / Manu (soft)
Ethernet10Base -T, /100Base-TX, RJ45 Connector
Max Imagine Resolution4M
Frame25/30 fps
Image compressionH.264/H.265
Dual streamSupport
OnvifOnvif 2.4 Ver.
ProtocolsTCP/IP.HTTP.DHCP.PPPoE.UDP.RTP/RTCP.DNS.DDNS .UPnP.SMTP
Manual speedPan（0.2°～200°/s）
Tilt（0.2°～100°/s）
Preset speed200°/S
RotationContinuously 360°；tilt 0～90° with auto-flip
Preset 128 preset, title can be edited
Auto-flipTilt down 90°, with auto-flip 180°
Scan355° programmable ，4scan
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
OSDBuilt-in
Temperature -20℃～+60℃
Humidity0～95%（Non-condensation）
Protection gradeIP66, lightning-proof, surge-proof
PowerDC24V/2.7A
Net weight6kg

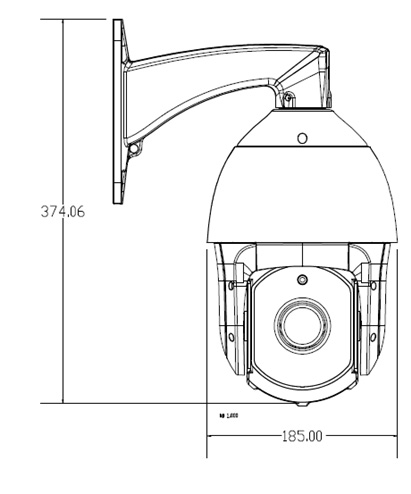

Demensions:

OMV-ZP64N-E
