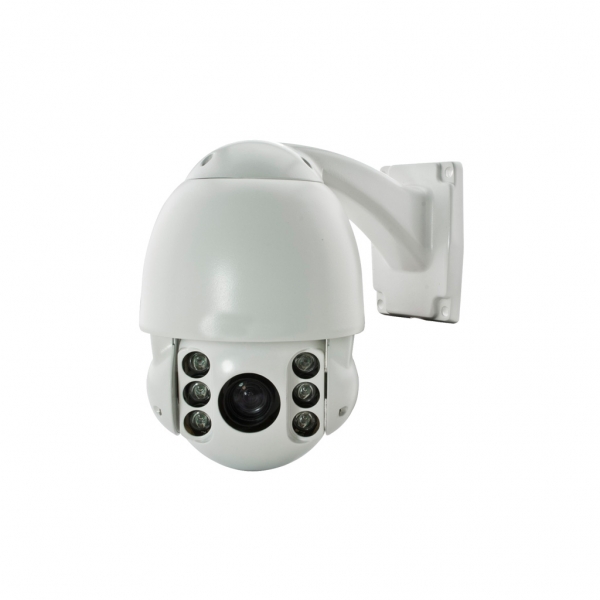

OMV-ZP46N-5

• HIS3516D+1/3” 4.0M OV4689 CMOS
• H.265/H.264 / MJPEG
• Max 2304x1296@30fps
• Optical x10,Zoom f = 5.1mm ~ 51mm
• Onvif 2.4 Ver.
• -10℃～+50℃
• DC 12V 2A

Specification:

Pan & Tilt
Manual speedPan（0.1°～200°/s）
Tilt（0.1°～200°/s）
RotationPan continuously 360°, tilt 0～90° with auto-flip
Preset 128 preset, title can be edited
Auto-flipTilt down 90°, with auto-flip 180°
Scan355°programmable, 4 scan
Pattern4 patterns, and each record time is not less than 180s
Tour4 tour, and speed & park time of presets can be set.
Idlle runtour/preset/pattern/scan can be set
Power up runtour/preset/pattern/scan can be set
Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
CAM SPEC
sensorHIS3516D+1/3” 4.0M OV4689 CMOS
Effective Pixels Max 2304x1296@30fps         2592x1520@22fps
Image OutputMain Stream:2592x1944、2592x1520、2304x1296、1920x1080、1280x960、1280×720、720×576、640×480
Sub Stream: 640×480、480x360、352×288、320×240、176×144
MJPEG：1080P、1280x720、off
Signal SystemPAL/NTSC
Frame25/30 fps
Image CompressionH.265/H.264 / MJPEG
OPTICSOptical x10,Zoom  f = 5.1mm ~ 51mm
AngleAppr. 68°(Wide) to 6.7°(Tele)
Auto FocusAuto / Semi-automatic / Manual
Zoom SpeedApprox.3.0s(Optical Wide-Tele)
Min. IlluminationColor : 0.05 lux , BW : 0.01lux
Shutter Time1 /2~1/20,000s
S/N (Y signal)52dB
White BalanceAuto
AGCAuto/Manua
BLCON/OFF
WDRSupport
DNRAuto / Off / Low / Middle / High
HLCOff / On
Max GainAuto
IRISAuto
FLIPVertical , Horizontal ,Vertical-Horizontal,OFF Selectable
Privacy Support
 Motion DetectionSupport
IR
IR irradiation distance60m
IR irradiation angleAdjustable by zoom
ICRManual/Auto
Network
Ethernet10Base -T, /100Base-TX, RJ45 Connector
ProtocolsTCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Security MeasuresUser authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
OnvifOnvif 2.4 Ver.
OSDBuilt-in
ID range1-254(software add.)
Power consumption9W/25W(IR_LED ON)
Power supplyDC 12V 2A
Temperature -10℃～+50℃
InstallationWall installation, ceiling installation, ceiling type installation
Net weight2.7kg
SizeProduct size 215.3×200.8mm， Packing size  Packing size 255×205×250mm
Protection Level:IP66 standard (outdoor dome)
TVS lightning protection, surge protection and voltage transient protection

Demensions:

OMV-ZP46N-5
