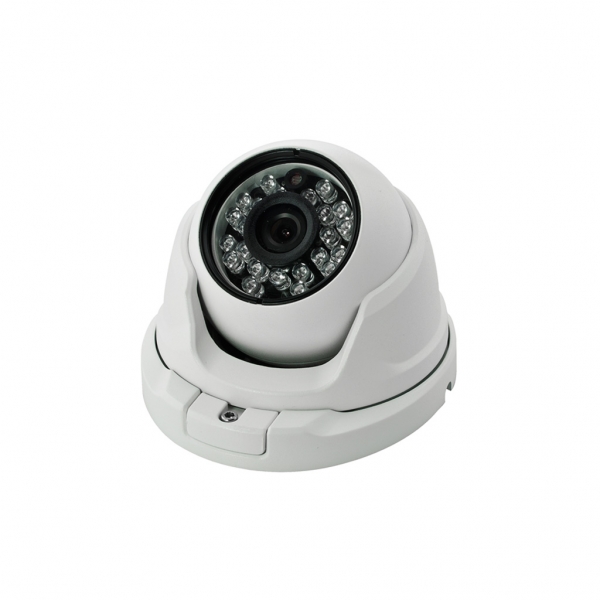

OMV-WNIRDH-HS420ES

• 1/2.7" Sony IMX323 CMOSsensor Hi3516Cv200
• 1920*1080，1-25(30)fps ；1280*720，1-25(30)fps
• 3.6mm H.264
• Support P2P，（IOS，Android） 1 channel linear audio input
• -20~ +50℃ RH95% Max
• 12VDC(±10%)/ 420mA POE

Specification:

IR distance20 M ( with 18pcs SMD IR)
Power12VDC(±10%)/ 420mA
Lens3.6mm
Size(mm)￠105*63
Weight (g)300g
Storage temperature-30~ +60℃ RH95% Max
Operation Temperature-20~ +50℃ RH95% Max
structureEmbedded Linux，Hi3516Cv200
Sensor1/2.7" Sony IMX323 CMOSsensor
Min luxColor 0.1Lux@F1.2,white/black 0.01 Lux@F1.2
WDRDWDR；WDR Range＞80db
video processingH.264，dual-stream；CBR/VBR，32K~16M bit/S；1-30fps
video outputMain stream1920*1080，1-25(30)fps ；1280*720，1-25(30)fps
Sub-stream720*576，1-25(30)fps ； 640*480，1-25(30)fps
640*352，1-25(30)fps,320*240，1-25(30)fps
Audio interfaceSupport 1 channel linear audio input；1channel audio output(Optional,additional cost 1USD)
Audio processingG.711 coding Standard,Support bothway Voice intercom function,support the synchronization of audio and video
network Port1 RJ45 ethernet network port，10M/100M self-adaption
Network protocolTCP/UDP/HTTP/MULTICAST/UPnP/NTP/RTSP/Onvif
USBno
IR linkageyes
IR_CUT hole distance/switch voltage20MM / 9V ~ 200ms
Hardware Reset interfaceyes(Optional,additional cost is 1USD)
Pan-tilt interfaceExtension interface
CVBS transmissionno
3G transmissionno
WIFI transmissionno
Alarm inputSupport extension interface
Alarm outputSupport extension interface
Operation functionSupport Web setting,OSD,real-time video transmission,support motive detection and IO alarm linkage for front end shortage/Capture,Support Central remind and image linkage after motion detection and IO alarm linkage,support MJPEG capture,Support unit clint-side romote management software,provide complete SDK
POE power supplyOptional (additional cost 4USD)
Standard protocolOnvif 2.4
mobileSupport P2P，（IOS，Android）
