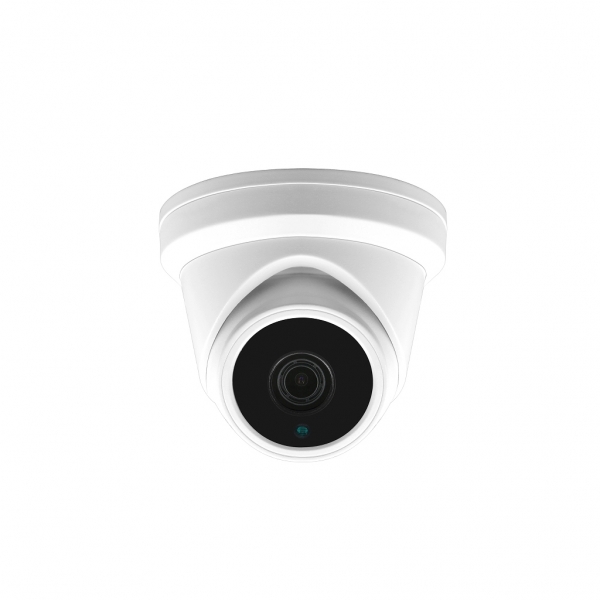

OMV-W964AHBB97A

•5 Megapixel
•1/3"" CMOS Sensor
•15fps@5 MP (2592*1944)
•25fps@4 MP(2592*1520)
•12PCS SMD IR Leds
•IR Distance:15-20M
•Material: Metal
•Waterproof level: IP65
•External Audio

Features:

  • 1/3" UHD OmniBSI-2 CMOS sensor
  • Max. 5MP resolution 2592 x 1944 output
  • Low illumination 0.1Lux
  • Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
  • RTSP and Onvif 2.6 compatible
  • H.265/H.264 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Optional customization Lens/Audio/POE, etc.
  • Lightning protection 4000V
  • Strong water-proofhousing, IP66
  • 18pcs SMD Array IR Leds, IR distance 20-25 meters
  • 2.8/3.6/6 mm Fixed Lens Optional

Technical Specifications:

Camera
ImageSensor1/3"OV4689 CMOS
EffectivePixels2688(H)×1520(V)
ElectronicShutterAUTO, 1/25s ~ 1/100000s
Min.Illumination0.1Lux@F1.2(AGCON), 0Lux IR on
Day/NightAuto/Color/(B/W)/Timing
WDRDigitalWDR
WhiteBalanceAuto
AGC/BLCSupport
DNR2D/3D DNR
OtherMulti-lines OSD, MotionDetection, Privacy Mask, Mirror, Rotate
Encode
EmbeddedSolutionHi3516D
VideoStandardH.265/H.264
VideoResolutionMainStream:
15fps@5MP(2592x1944),25fps@4MP(2592x1520),30fps@3MP/1080P/720P
SubStream: VGA(640x480)/360P/QVGA@25fps, etc.
VideoBitrates32Kbps - 8Mbps, VBR/CBR
AudioStandardG.711-u
OSDOverlayTitle and Time overlay
IRLed
IRLed18pcsSMD Array IR Leds
IRDistance20-25M
Lens
Focallength2.8/3.6/6mm Fixed Lens
Optional Function
POE,Audio, etc.
Network Services
ProtocolHTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP,etc.
P2PYes
WebIE, Firefox, etc.
MediaCMS,Android, IOS
ONVIF2.6compatible
General
NetworkPort1-RJ45,100Mbps, POE optional
PowerSupply12 VDC ± 10%
Power Consumption< 8 W
Operating Temp.-30℃-(+60)℃, 10%-90%RH

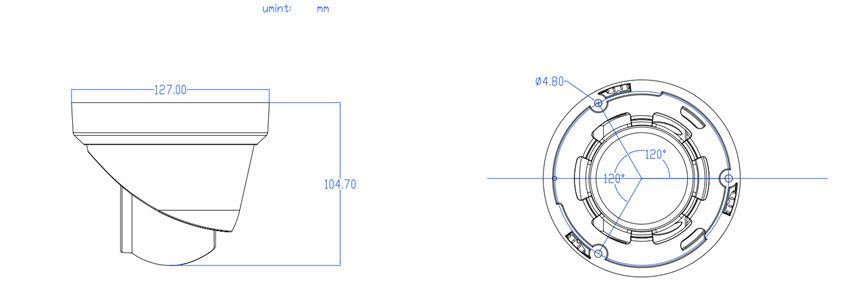

Demensions:
