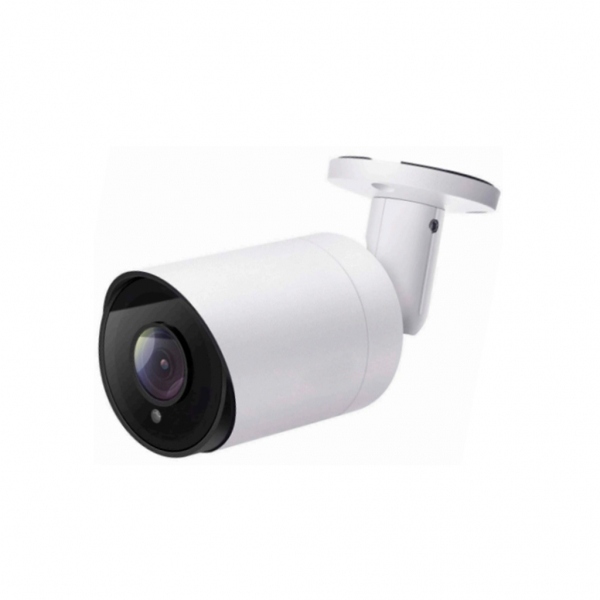

OMV-W685AHZ49EA

• 5 Megapixel
• 1/2.7"" CMOS Sensor
• 25fps@4 MP (2592*1520)
• 15fps@5 MP (2592*1944)
• 2PCS Array IR Leds
• IR distance: 20-30M
• Material: Metal
• Waterproof level: IP67

Features

  • 1/2.7" OmniVision OS05A10 CMOS sensor
  • 5MP HD resolution 2592 x 1944 output
  • Ultra low illumination 0.01Lux
  • Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror
  • RTSP and Onvif 17.06 compatible
  • H.265/H.264 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  •   RJ45 100mbps network port, IEEE802.3af PoE
  • Lightning protection 4000V
  • Strong water-proof housing, IP66
  • 2 pcs Array IR Leds, IR distance 30 meters
  • 2.8mm Fixed Lens

Specifications

Camera
Image Sensor1/2.7" 5MP OS05A20 CMOS + Hi3516EV300
Effective Pixels2592(H)×1944 (V)
Electronic ShutterAUTO, 1/25s ~ 1/100000s
Min. Illumination0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/NightAuto/Color/(B/W)/Timing
WDRDigital WDR
White BalanceAuto/Manual
AGC/BLC/HLCSupport
DNR2D/3D DNR
OtherOSD, Motion Detection, Privacy Mask, Defog, Mirror,Flip,ROI, Anti-flicker
Encode
Video StandardH.264/H.265
Video ResolutionMainStream: 20fps@5MP(2592x1944),20fps@4MP,30fps@3MP/1080P/720P
Sub Stream: D1/VGA(640x480)/360P/CIF@30fps
Video Bitrates128Kbps-6Mbps,VBR/CBR
Audio StandardG.711-u/G.711-a
Built-in MicOptional
OSD OverlayTitle and Time overlay
IR Led
IR Led2PCS Array IR Leds
IR Distance30M
Lens
Focal length2.8mm Fixed Lens
Optional Function
Audio, SD Card Slot, Alarm etc.
Network Services
ProtocolHTTP/RTSP/FTP/SMTP/DHCP/NTP, etc.
P2PYes
WebIE ,Edge, Chrome,Firefox,Safari, etc.
MediaCMS, Android, IOS
ONVIF17.12 compatible
General
Network Port1-RJ45, 100Mbps, POE optional
Power Supply12 VDC ± 10%
Power Consumption< 8 W
Operating Temp.-20℃-(+60)℃, 10%-90%RH

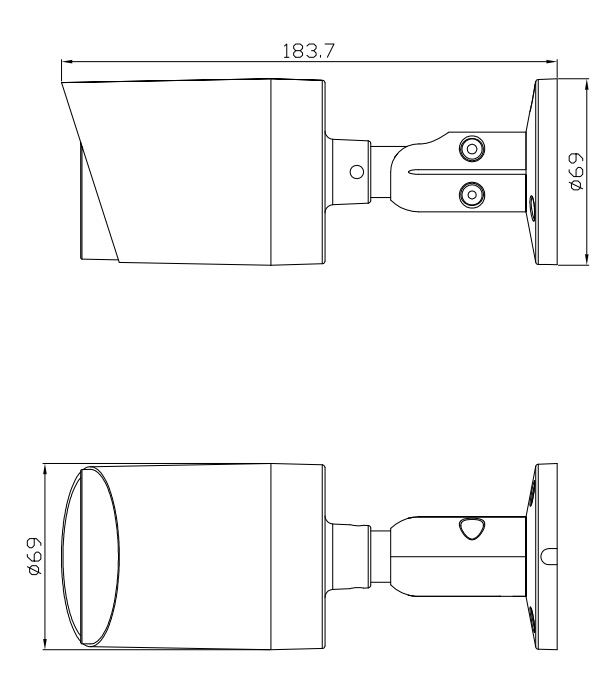

Dimensions

OMV-W685AHZ49EA Dimensions
