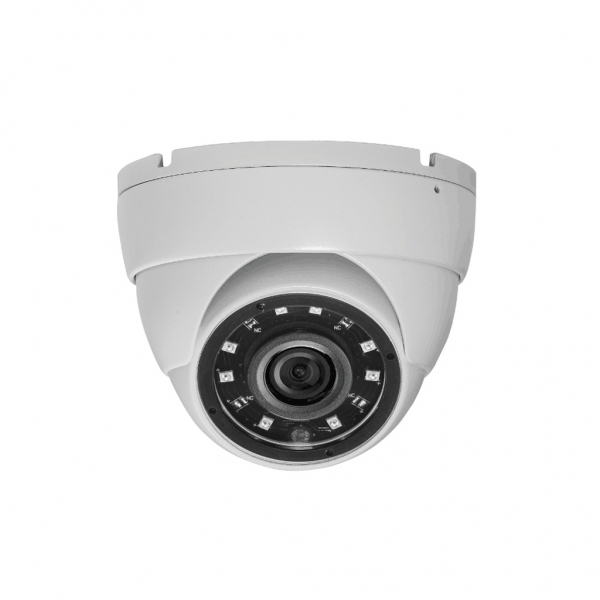

OMV-W522FAHBB85A

  2 Megapixel
  1/2.8"" CMOS Starvis Sensor
  25fps@1080P(1920x1080);
  12PCS SMD IR Leds
  IR distance: 15-20M
  Material: Metal
  Waterproof level: IP65
  External Audio

Features

  • 1/2.8" Sony IMX307 Starvis CMOS Sensor
  • Full HD resolution 1920 x 1080P
  • Ultra low illumination 0.001Lux
  • Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror
  • RTSP and Onvif 2.6 compatible
  • H.265/H.264 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Optional customization Lens/Audio/Alarm/Storage/POE, etc.
  • Lightning protection 4000V
  • Strong housing, IP66
  • 12pcs SMD Array IR Leds; IR distance 15-20 meters
  • 2.8/mm fixed lens

Specifications

Camera
Image Sensor1/2.8" Sony IMX307 Starvis CMOS Sensor
Effective Pixels1945 (H) × 1097 (V)
Electronic ShutterAUTO, 1/25s ~ 1/100000s
Min. Illumination0.001Lux@F1.2(AGC ON), 0Lux IR on
Day/NightAuto/Color/(B/W)/Timing
WDRDigital WDR
White BalanceAuto/Indoor/Outdoor
AGC/BLCSupport
DNR2D/3D DNR
OtherMotion Detection, Privacy Mask, Mirror, flip
Encode
Embedded SolutionMstar 313E
Video StandardH.265/H.264
Video Resolution

Main Stream:1080P@25fps,720P@30fps
Sub Stream: VGA(640x480)/360P@25fps, etc.

Video Bitrates32Kbps - 6Mbps, VBR/CBR
Audio StandardG.711-u/G.711-a
IR Led
IR Led12pcs SMD Array IR Leds
IR Distance15-20M
Lens
Focal length2.8 mm fixed lens
Optional Function
POE, Audio, Alarm In/Out, SD card, etc.
Network Services
ProtocolRTSP/FTP/DHCP/NTP etc.
P2PYes
WebIE , Firefox, etc.
MediaCMS, Android, IOS
ONVIF2.6 compatible
General
Network Port1-RJ45, 100Mbps, POE optional
Power Supply12 VDC ± 10%
Power Consumption< 10 W
Operating Temp.-30℃-(+60)℃, 10%-90%RH

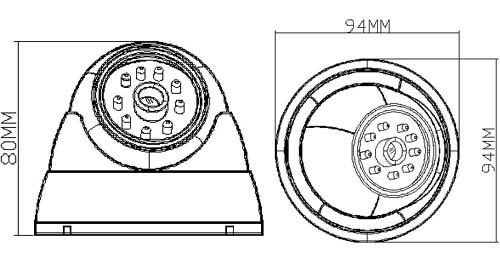

Dimensions

OMV-W522FAHBB85A
