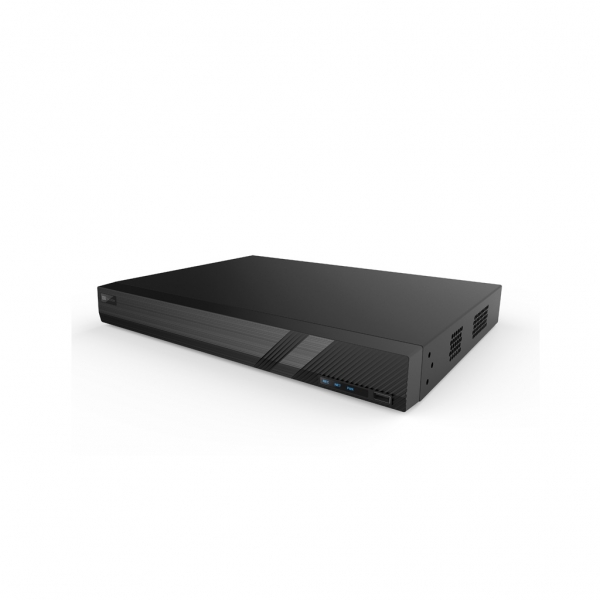

OMV-NVR6216G-V2

•16ch H.265 NVR
•Support 25/30fps@4K/5MP/3MP/1080P/720P Recording
•Support 16ch local playback and 4ch network playback
•Support two-way audio
•Support 4K, HDMI and VGA output
•Support 2 SATA., Max 8TB/HDD
•Support Onvif 2.6
•Max Bandwidth: 80Mbps

Features

Support 4K HD output and 16 CH 8MP(4K) / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265/H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor; 16CH simultaneous playback
Time slice, event , tag search and backup via USB, network and so on
preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol and CMS supported Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
User management, log view and device status preview
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support QR Code scanning by mobile phone and PAD with iOS and Android OS

Specifications

System	Compression	Standard H.265 / H.264
System	OS	Embedded Linux
Video	Network Input	16 CH IPC
	Bandwidth	112Mbps
	Output	HDMI × 1 : 4K / 2K / 1920 × 1080 / 1280 × 1024; VGA x 1:1920 × 1080 / 1280 × 1024
Audio	Input	16 CH IPC
	2-way Audio	RCA × 1
	Local Output	RCA × 1
Record	Record Stream	Dual stream recording
	Resolution	8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
	Mode	Manual, timer, motion, sensor
Playback	Simultaneous Playback	Max 16CH
	Search	Time slice / time / event / tag search / smart search
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, sensor, motion, exception
	Input	8 CH local input
	output	4 CH local input
	Triggering	Record, snap, preset, e-mail, etc.
Network	Interface	Gigabit RJ45 port × 1 (LAN port)
	PoE	10/100Mbps RJ45 x 16, IEEE802.3af
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple users online
Mobile Device	OS	iOS, Android
Storage	Hard Drive	SATA × 2
Backup	Local Backup	USB Drive
Backup	Network Backup	Yes
Extend port	USB	USB 2.0 × 1, USB3.0 x 1 (rear panel)
Extend port	Remote controller	Yes
General	Power Input	AC 110V~240V
	Consumption	≤ 30W ( without HDD )
	Dimensions(mm)	440 x 390 x 70 ( W x D x H )
	Work Environment	-10 ～ 50 ℃，10% ～ 90% humidity

Rear Panel

OMV-NVR6216G-V2
