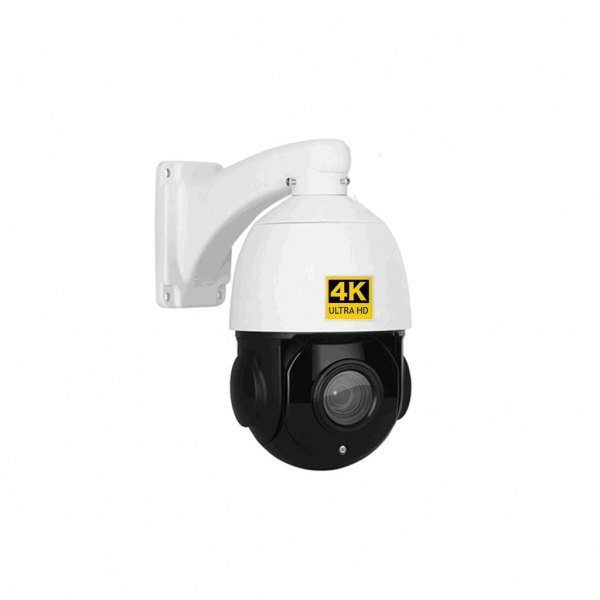

OMV-M608IR-V2-20X-BTJ

•8 Megapixel IP PTZ 4.5""Mini Speed Dome
•Human Body Detection
•1/2.8"" CMOS Sensor
•20fps@8MP(3840*2160)
•*20X/30X Optical Zoom
•*8PCS Array IR Leds
•* IR Distance: 80-100M
•Build in Microphone

Features

  • 1/2.8" Sony low-light CMOS sensor
  • 4K 8MP resolution 3840 x 2160 output
  • Low illumination 0.01Lux
  • 20X Optical Zoom Lens (4.7-94mm)
  • Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
  • D-WDR, Mirror, Flip, Defogging
  • Multiply Style OSD Overlay,Motion Detection, Privacy Mask
  • RTSP and Onvif 17.06 compatible with many third-party NVR
  • H.264/H.265 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Support user authentication, video data encryption
  • Support Alarm Snapshot to Email and FTP
  • Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP Remote Access
  • Lightning protection 4000V
  • Strong water-proof housing IP66
  • 8 pcs Array IR Leds, IR distance 80-100meters

Specification

Camera
Image Sensor1/2.8" Sony CMOS
Effective Pixels8 megapixels
Electronic ShutterAUTO, 1/25s ~ 1/100000s
Min. Illumination0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/NightAuto/Color/(B/W)/Timing
WDRDigital WDR
White BalanceAuto/Manual
BLC /HLCSupport
DNR2D/3D DNR
OtherAGC, Motion Detection, Privacy Mask, Flip, OSD overlay
Encode
Video StandardH.264/H.265
Video ResolutionMainStream: 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates512Kbps - 12Mbps, VBR/CBR
Audio StandardG.711-u/G.711-a
Built-in MicInternal Microphone
IR Led
IR Led8pcs Array IR Leds (4 near + 4 far)
IR Distance80-100 M
Lens
Focal length4.7-94mm
F ValueF1.6-3.5
View angle64 - 2.9 °
Zoom20X Optical Zoom
Optional Function
High Power PoE/ Built in Microphone/Human Body Detection
PTZ
Pan/Tilt RangePan: 0° ~ 360°; Tilt: 0° ~ 90°
Preset Point128
Control SpeedPan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s
A-B  ScanningSupport
Auto CruisingSupport 8 groups
Power on ActionPreset/Scan/Cruise
Power-off RecoverySupport
Network Services
ProtocolHTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2PYes
WebIE , Firefox (32bit esr), etc.
MediaCMS, Android, IOS
ONVIF17.06 compatible
General
Network Port1-RJ45, 100Mbps, PoE 48V in
Power Supply12 VDC ± 10% 2A
Power Consumption< 20 W
Operating Temp.-30℃-(+60)℃, 10%-90%RH
SizeΦ137(mm)×234(mm)
Weight2.3kg

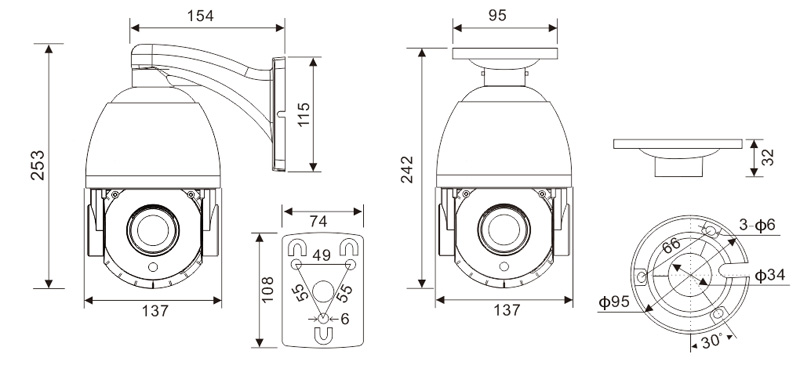

Dimensions

OMV-M608IR-V2-20X-BTJ
