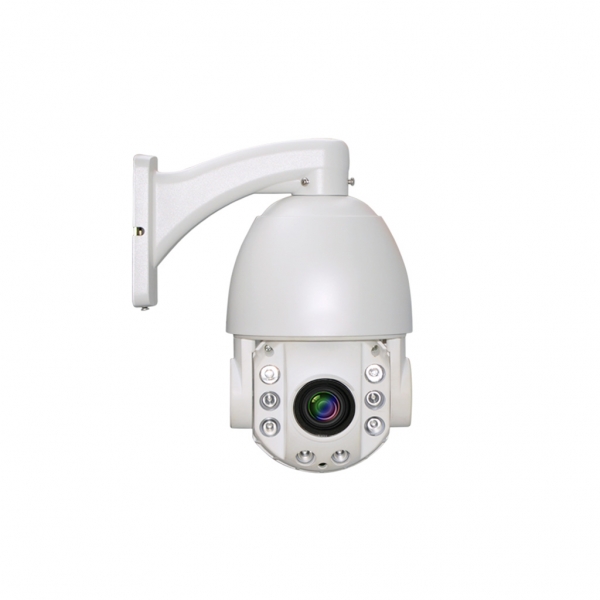

OMV-M555IR-20X-BTJ

• 5.0 Megapixel IP PTZ Speed Dome
• 1/2.8"" Sony CMOS Sensor
• 15fps@5 MP（2592*1944)
• 25/30fps@4 MP(2592*1520)
• *8pcs Array IR Leds
• * IR Distance: 80-100M
• 20X Optical Zoom

Features

  • 1/2.8" Sony low-light CMOS sensor
  • Max. 5MP resolution 2592 x 1944 output
  • Low illumination 0.01Lux
  • 20x optical zoom lens
  • Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
  • D-WDR, Mirror, rotate, Defogging
  • Multiply Style OSD Overlay,Motion Detection, Privacy Mask
  • RTSP and Onvif 17.06 compatible with many third-party NVR
  • H.264/H.265 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Support user authentication, video data encryption
  • Support Alarm Snapshot to Email and FTP
  • Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
  • Lightning protection 4000V
  • Strong water-proof housing IP66
  • 8 pcs Array IR Leds, IR distance 80-100 meters
  • 4.7-94mm AF Lens

Specifications

Camera
Image Sensor1/2.8" Sony IMX335 CMOS
Effective Pixels5 megapixels
Electronic ShutterAUTO, 1/25s ~ 1/100000s
Min. Illumination0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/NightAuto/Color/(B/W)/Timing
WDRDigital WDR
White BalanceAuto/Manual
AGC/BLC/HLCSupport
DNR2D/3D DNR
OtherMulti-lines OSD, Motion Detection, Privacy Mask, Mirror
Encode
Video StandardH.265/H.264
Video ResolutionMain Stream:
15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P
Sub Stream: D1/VGA(640x480)/360P/QVGA@25fps
Video Bitrates32Kbps - 8Mbps, VBR/CBR
Audio StandardG.711-u/G.711-a
OSD OverlayTitle and Time overlay
IR Led
IR Led8pcs array IR Led s(4 near + 4 far)
IR Distance80-100 M
Lens
Focal length4.7-94mm Motorized Lens
IRISF1.6-3.5
View angle64 - 2.9 °
Zoom20x optical zoom
Optional Function
High power PoE
PTZ
Pan/Tilt RangePan: 0° ~ 355°; Tilt: 0° ~ 90°
Preset Point128
Control SpeedPan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s
A-B  ScanningSupport
Auto CruisingSupport 8 groups
Power on ActionPreset/Scan/Cruise
Power-off RecoverySupport
Network Services
ProtocolHTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2PYes
WebIE , Firefox (32bit esr), etc.
MediaCMS, Android, IOS
ONVIF17.06 compatible
General
Network Port1-RJ45, 100Mbps, PoE 48V in
Power Supply12 VDC ± 10% 2A
Power Consumption< 20 W
Operating Temp.-30℃-(+60)℃, 10%-90%RH
SizeΦ137(mm)×234(mm)
Weight2.2kg

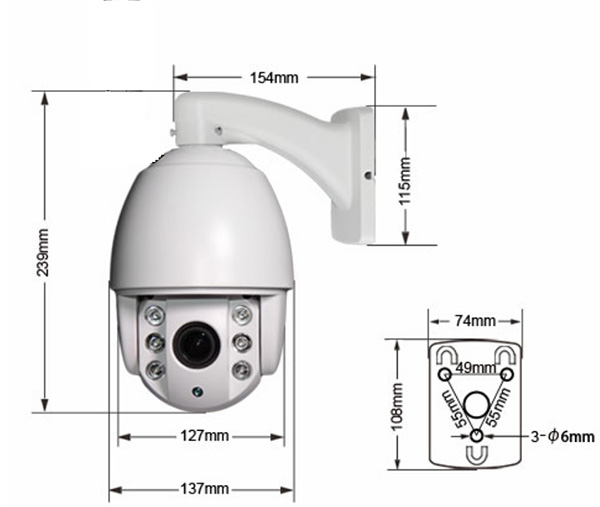

Dimensions

OMV-M555IR-20X-BTJ
