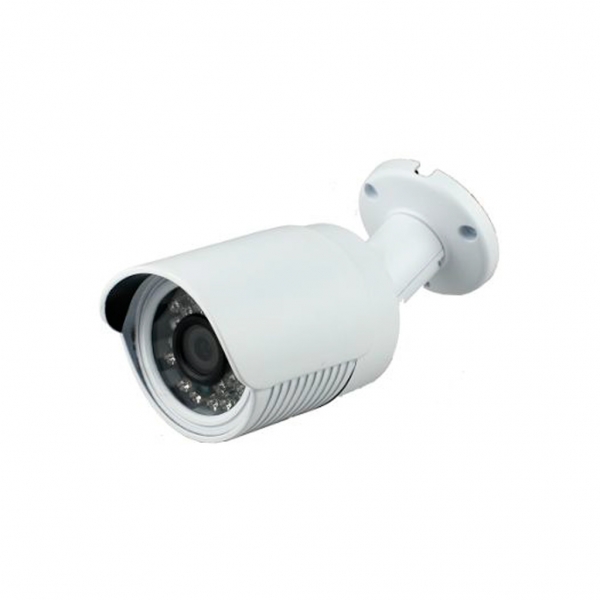

OMV-EQ8340PL-IR1

• 1/3" OV4689 ultra-low illumination CMOS
• 4MP 2592*1520@15fps H.265/H.264
• HD professional lens3.6mm
• DC12V±10% POE
• -10℃~60℃

Feature:

  • High resolution 4MP、3MP, image presented vivid and clear
  • Support automatic color change/IR-CUT,achieving day and night non-stop monitoring
  • Support various information superimposed (such as:ID、IP、DDNS and so on)
  • Advanced H.265/H.264 video compression, achieving ultra-low bit-rate, superb high-definition picture quality
  • support various mobile long-distance monitoring(iPhone,Windows Mobile,Black Berry, Symbian, Android)
  • Support multiple web browsers(IE、Chrome、Firefox、Safari)
  • support auto electronic shutter, adapt to different monitoring environment
  • web and CMS supporting、central management software MYEYE，providing SDK development.
  • Support HVR/NVR connection, support ONVIF standard

Application:

Apply for road,warehouse,underground
parking lot,bar,pipeline and somewhere where require HD images but with dark light and poor sunshine.

Specifiction:

ModelOMV-EQ8340PL-IR1
Camera
Image sensor1/3" OV4689 ultra-low illumination CMOS
Min.illuminationColor 0.01Lux @(F1.2,AGC ON),0 LUX with IR
B/W 0.001 Lux @ (F1.2,AGC ON),0 LUX with IR
Shutter1/50(1/60)s to  1/10,000 s
LensHD professional lens3.6mm@ F1.8 (6mm option)
Lens mountM12
Day/nightSupport IR-CUT
Compression
Video compressionH.265/H.264,support dual stream,AVI; 1~30f/s variable
Bite rate32 Kbps~10Mbps
Audio compressionG.711a
Max.image reolution2592*1520
Frame rateMain stream:4MP 2592*1520@15fps；3MP 2048*1536@25fps
sub-stream: 1280*720,704*576 @25fps
Image settingSaturation, brightness and contrast are adjustable through IE browser or client software.
Network
StorageNetwork storage
Intelligent alarmMotion detection, video loss, cable break, IP address conflicts
protocolTCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP
(HTTPS,SIP ,802.1x,IPv6  option)
Basicanti-flicker, dual-stream, heartbeat, password protection
Interface
Network inferface1 * RJ45 10M/100M adaptive ethernet port
Audio interface1ch 3.5mm audio input
General
Working condition-10℃~60℃， humidity less than 90%
( non-condensing)
Power supplyDC12V±10%
Power consumption“IR1”:3W MAX;
Protection rangeIP66
IR distance“IR1”:10-20 meters;
DimensionΦ64.5mm*148mm
WeightAbout 390g

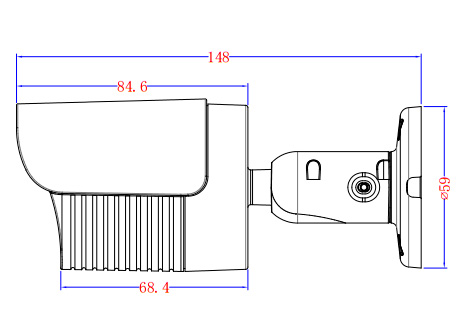

Dimension:

OMV-EQ8340PL-IR1
