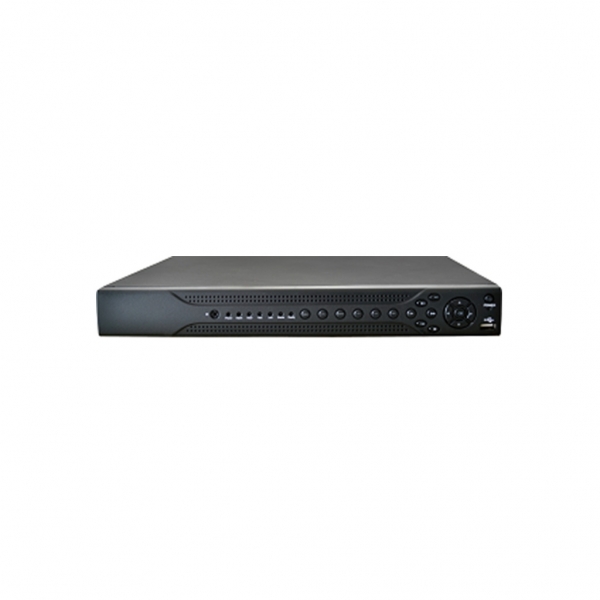

OMV-ADVR7016DA-GS

• Видеорегистратор 5 в 1
• 16*4M@8fps(AHD)；16*3M@10fps(AHD)；
• 16*1080P @15fps (5 in 1)；16*720P(5 in 1)
• Playback 8ch
• Audio 6 каналов
• HDMI up to 4K output 2 SATA(Up to 8TB);

Features:

  • Support 16ch 4M unreal-time encoding;
  • Support AHD, TVI,CVI, CVBS, IP video input;
  • Support VGA maximum 1080P output, HDMI up to 4K output
  • 1U Case, 2 SATA(Up to 8TB);
  • 1*10/100Mbps auto-sensing Ethernet port, RJ45 port；
  • Automatic networking support, a key to add equipment;
  • Support the Onvif protocol;
  • Support GB28181 (Optional);
  • Cloud services, P2P,  alarm information push to phone;
  • Support remote access, support ARSP;
  • Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, Alarm center, etc ;
  • Mobile phone remote monitoring (iOS, Android);
  • Multi browser access (IE, Chrome, Firefox, Safari);
  • Support for more than twenty languages;
  • Perfect protection circuit,unique triple watchdog function
  • Support WEB, CMS, VMS, MYEYE Platform;

Parameters:

SystemprocessorHi3531A
VideoCodecH.264+/H.264
Encode16*4M@8fps(AHD)；16*3M@10fps(AHD)；
16*1080P @15fps (5 in 1)；16*720P(5 in 1)
Decode8*4M@8fps(AHD)；8*3M@10fps(AHD)；
8*1080P @15fps (5 in 1)；8*720P(5 in 1)
  Multi-modeAnalog:16*4M@8fps(AHD);
16*3M@10fps(AHD)；
16*1080P @15fps (5 in 1) ;16*720P(5 in 1)
Hybird:8*4M(analog)+8*4M (network)
IP: 8*3M ;4*5M
Playback8ch
AudioCompressionG.711a
IntercomSupport
ManagementRecord modeManual>Alarm>Motion detection>Timing
Inquire modeInquire by Time/Calendar/Event/Channel
Storage modeHDD Storage, Network Storage
BackupNetwork, USB, SATA
InterfaceVideo input16*BNC（Support Coaxitron）
HDMI output1*HDMI (MAX:4K)
VGA output1*VGA (MAX:1080P)
Audio I/O6/1
Alarm I/O4/1
Ethernet port1*10/100Mbps Ethernet port, RJ45 port
PTZ control1*RS485, Support for multiple PTZ protocol
USB Port3*USB2.0 ports
HDD2*SATA interface (Up to 8TB)
GeneralTemperature0 ℃ - + 55 ℃
Humidity10% -90% RH
Power supply12V/4A
Consumption<10W（Without HDD）
WeightAround 1.8KG
Dimension350mm(L)* 296mm(W)* 44mm(H)

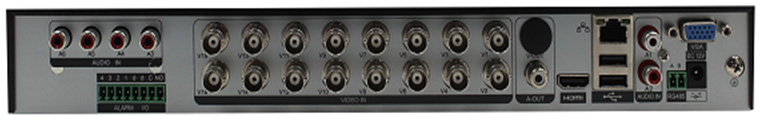

Interface:

OMV-ADVR7016DA-GS
