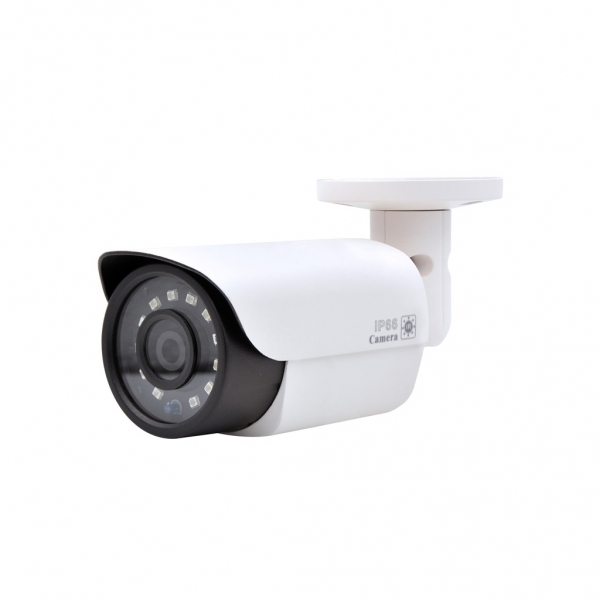

OMV-A945AHZ37DA

• 5.0 megapixel, 4 IN 1;
• 1/2.5"" CMOS Sensor;
• 20fps@5MP(2560×1936), AHD/TVI ；
• 25/30fps@4MP(2560*1440), AHD/TVI/CVI；
• 12PCS SMD IR Leds;
• IR distance: 15-20M

Features:

1/2.5" Aptina AR0521 CMOS sensor
5MP HD resolution 2560 x 1936P
4-in-1 HDCVI / HDTVI/AHD HD output and CVBS 960H output
OSD menu control over coaxial cable (UTC)
Perfect wide dynamic range and low light sense
Over 300M long distance real time monitoring
Day/Night (ICR), AWB, AGC, BLC, HLC, WDR, 2D/3D DNR, Mirror, Flip, MD
Waterproof level IP66
12PCS 14μSMD Array Leds, IR distance 15-20 meters
3.6mm/6mm Lens Optional

Specifications:

Camera
Image Sensor	1/2.5" 5 Mega pixels Aptina CMOS
Chipset	AR0521+FH8538M
Effective Pixels	2592 (H) x 1944 (V)
Video Resolution	AHD/TVI 20fps@2560×1936P, CVI 30fps@2560×1440P, adjustable
Electronic Shutter	Auto, 1/50s~1/60,000s
Min. Illumination	0.01Lux@（F1.2,AGC ON), 0 Lux with IR
Video System	PAL/NTSC
Video Output	1 channel, HDCVI / HDTVI/AHD /CVBS optional
Day/Night	Auto(ICR) / Color / B/W
WDR	Double-scan WDR
Smart IR Control	Support
DNR	2D/3D DNR, multi-levels adjustable
OSD Menu	Support, coaxial cable control via DVR directly (UTC)
Other Function	AWB, AGC,ACE, BLC, HLC, DNR, Mirror, Flip, MD,Defog, IRIS
IR Led
IR Led	12PCS 14μSMD Array Leds
IR Distance	15-20M
Lens
Focal length	3.6mm/6mm Lens Optional
General
Power Supply	12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-20°C~+60°C / Less than 95%RH

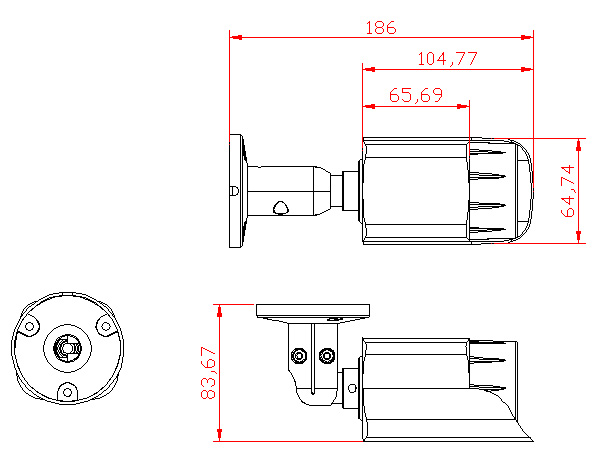

Demensions:
