OMV-8916

•Up to 12 Megapixels
•16CH 1.3MP@30fps
•16CH 2MP@30fps
•16CH 3MP@20fps
•16CH 4MP@15fps
•16CH Synchronous Playback
•3-party network cameras supported
•Multi-Protocol support
•1-click configuration
•UL, CUL, CE, FCC Certification
•100 - 240V AC, 6.3A, 14°F - 131°F

Key Features:

  • Up to 32 network cameras can be connected
  • Support live view, storage, and playback of the connected camera with up to the resolution of 12 megapixels
  • Up to 4 SATA hard disks can be connected with up to 6TB capacity for each
  • Supports HDD quota and group modes
  • HDMI Video output at up to 4K (3840 × 2160) resolution

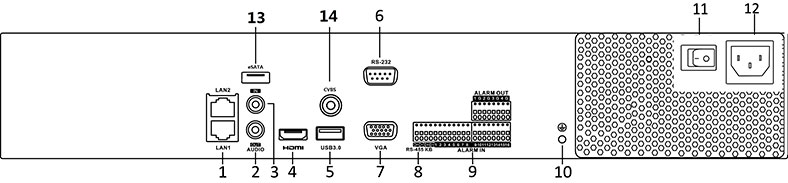

Rear Panel:

  1. LAN Network Interfaces
  2. Audio out
  3. Audio in
  4. HDMI Interface
  5. USB 3.0 Interface
  6. RS-232 Serial Interface
  7. VGA Interface
  8. RS-485 Serial Interface
  9. Alarm in/out
  10. GND
  11. 100~240VAC Power Input
  12. Power Switch
  13. eSATA Interface
  14. CVBS Output

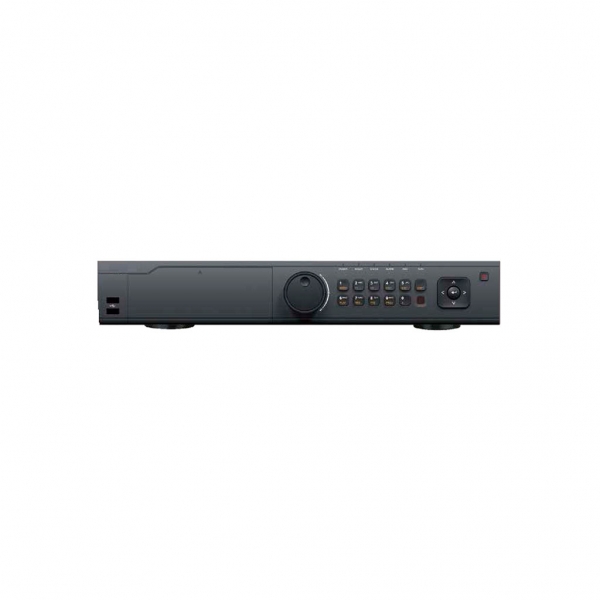

LTN8916



Features:

Video/Audio Input
IP video Input16 -CH, Up to 12 MP resolution
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth160Mbps
Outgoing bandwidth256Mbps
Remote connection128
Video/Audio Output
Recording resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  HDMI output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×  768/60Hz
VGA output1-ch, resolution:
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Decoding
Live view / Playback resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback16-CH
Capability4-ch @ 4K, or 16-ch  @1080p
Hard Disk
SATA4 SATA interfaces for 4 HDDs
CapacityUp to 6TB for each disk
External Interface
Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial interface1 RS-485 (half-duplex), 1 RS-232
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out16/4
GENERAL
Power Supply100~240V AC
Consumption≤20 W
Working Temperature+14 ºF~ + 131 ºF(-10 ºC ~ +55 ºC )
Working Humidity10% - 90%
Casing19-inch rack-mounted 1.5U casing
Dimensions (WxDxH)17.5"× 15.3" × 2.8"(445 × 390 ×70 mm)
Weight≤ 11 lb ( 5 Kg)
