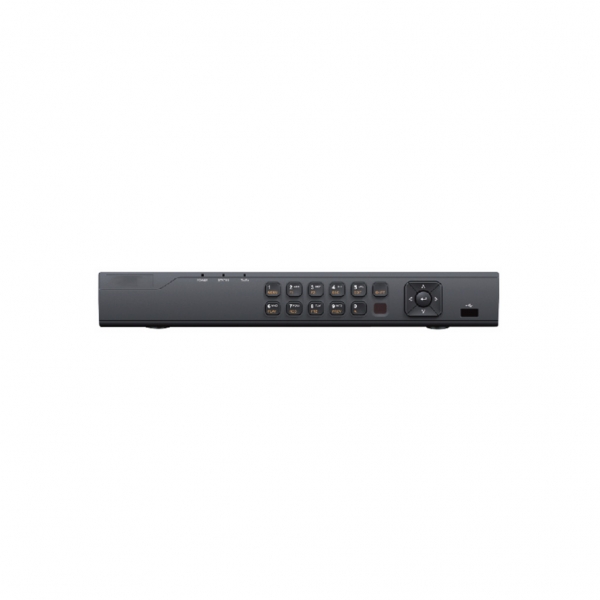

OMV-8516K-ST

• Hybrid Recorder 5 in 1
• Video/Audio
Analog & HD-TVI & IP &1080P AHD Video in
1 x VGA(1080P), 1 x HDMI 4K(3840 × 2160), 1 X CVBS;
4 x Audio In, 1 x Audio Out
• Interface
16/4 Alarm in/out
1 x RS485,
1 x USB 2.0 Port, 1 x USB 3.0 Port
2 x SATA HDD up to 16TB
• Dimension: 380 x 320 x 45mm(15" x 12.6" x 1.9")
• Weight: :≤2kg (4.4 lb)
• H265/H265+

Features:

  • Support HDTVI / HDCVI/ AHD / CVBS / IP cameras
  • Full channel recording at up to 5 M P resolution
  • HDMI output at up to 4K (3840 × 2160) resolution

Specification:

VIDEO/ AUDIO INPUT
Video  compressionH.265+/H.265/H.264+/H.264
Analog video input16ch
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input1080p25, 1080p30, 720p25,  720p30
HDCVI input1080p25, 1080p30, 720p25,  720p30
CVBS inputSupport
IP video input2-ch, Up to 6 MP resolution
Audio compressionG.711u
Audio input4-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO/ AUDIO OUTPUT
HDMI/  VGA outputVGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60H z, 1024 × 768/60 Hz
HDMI: 1-ch, 4K(3840 × 2160)/60Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution5   MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame rateMain stream: 5MP@12fps/4 MP@15fps/3 MP@18fps/1080p/720p/WD1/4CIF/VGA/CIF
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate32 Kbps-10Mbps
Audio output1-ch, RCA (Linear, 1  kΩ)
Audio  bit rate64 Kbps
Dual- streamSupport
Stream typeVideo, Video & Audio
Synchronous playback16ch
    NETWORK
Remote connections128
Network protocolsTCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    HARD DISK
SATA                                                 2 SATA
Capacity                                            Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the1staudio input)
Network interface1, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interfaceRS-485 (half-duplex)
USB portFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/ out16/4
    GENERAL
Power supplyDC12V
Consumtion≤ 25W
Working temperature-10 °C ~ +55 °C(14°F - 131°F)
Working humidity10%  ~ 90%
Chas sis1U chassis
Dimensions (WxDxH)380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight≤2Kg (4. 4lb)

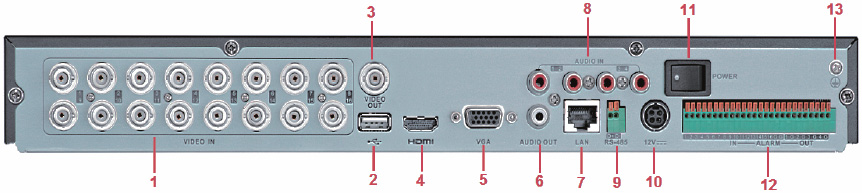

Rear Panel:

OMV-8516K-ST

  • 1. Video In
  • 2. USB Interface
  • 3. Video Out
  • 4. HDMI
  • 5. VGA Interface
  • 6. Audio Out
  • 7. LAN
  • 8. Audio In
  • 9. RS-485 Serial
  • 10. DC 12V
  • 11. Power Switch
  • 12. Alarm in/out
  • 13. GND
