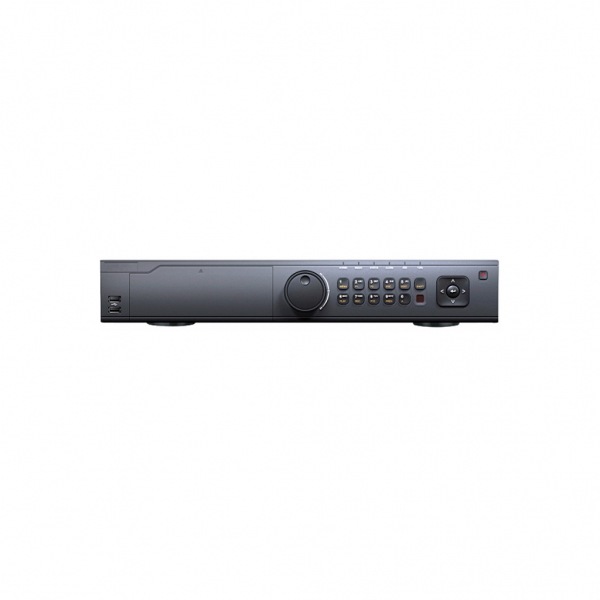

OMV-8424T-FA

• Hybrid Recorder 5 in 1
• H.264 & Dual-stream video compression;
• Support HD-TVI/analog/IP camera triple hybrid;
• Full channel 1080P@15fps, 720P@30fps recording;
• HDMI & VGA output up to 1080p resolution;
• Long transmission distance over coax cable;
• Support NAS, IP SAN Network Storage, 8 x POS;

Specification:

VIDEO/ AUDIO INPUT
Video compressionH.264
Video input24ch
BNC (1.0 Vp-p, 75  Ω), PAL  /  NTSC  self-adapive
IP inputUp to 8ch(1080p@30fps)
Audio compressionG.711u
Audio input4-ch, RCA (2.0 Vp-p, 1   kΩ)
Two-way audio input1-ch, RCA (2.0 Vp-p, 1   kΩ)
VIDEO/ AUDIO OUTPUT
HDMI/ VGA outputUp to 1920 × 1080
Encoding resolutionMain stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF /   CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF /   QVGA
Frame rateMain stream:1/16 fps to real time frame rate
Sub-stream:1/16 fps ~ Real time frame  rate
Video bit rate32 Kbps- 4 Mbps
Audio output1-ch, RCA (Linear, 1 kΩ)
Audio bit rate64 Kbps
Dual- streamSupport
Stream typeVideo, Video & Audio
Synchronous playback24ch
NETWORK
Remote connections128
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP,  SADP, SMTP, SNMP, NFS, iSCSI, UPnP™,   HTTPS
HARD DISK
SATA4 SATA interface for 4HDDS; 1 eSATA interface
CapacityUp to 8TB capacity for each   disk
EXTERNAL INTERFACE
Network interface1:10M / 100M/1000M s elf-adaptive Ethernet interface
Serial interfaceRS232, RS-485, keyboard
USB port3 × USB2.0
Alarm in/ out16/4
GENERAL
Power supply100 ~ 240VAC, 47 ~ 63HZ
Consumtion≤ 55 W
Working temperature-10 °C ~ +55  °C(14°F - 131°F)
Working humidity10% ~ 90%
Chas sis1.5  U chassis
Dimensions  (WxDxH)445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight≤5Kg (11.0 lb)

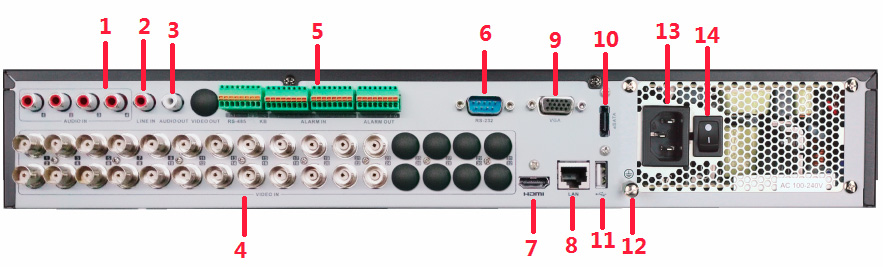

Rear Panel:

  1. Audio In;
  2. Line In;
  3. Audio Out;
  4. Video In;
  5. RS-485 Serial;
  6. RS-232 Serial Port
  7. HDMI;
  8. Lan;
  9. VGA Interface;
  10. eSata Interface;
  11. USB Port;
  12. GND;
  13. 100~240V AC Power Input;
  14. Power Switch

WHD8424T-FA
