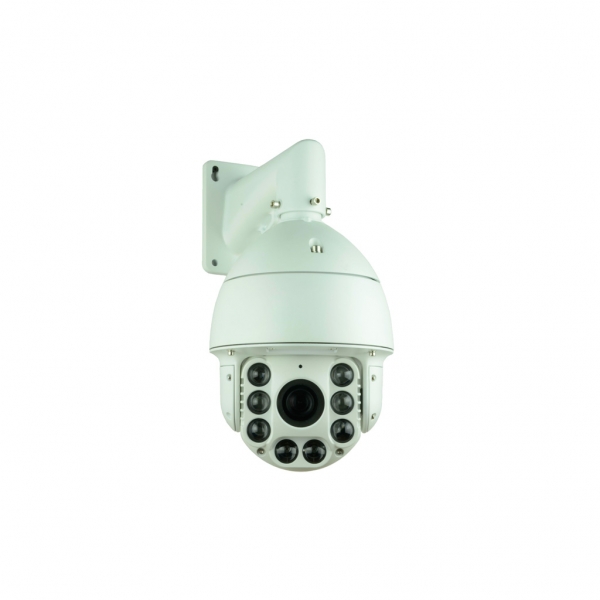

OMV-805G13AH

1.3 MP HD-AHD
AHD/960H Dual Output
200M IR Distance
36X Optical Zoom;Horizontal: 0.01°/s - 240°/s
Vertical: 0.01°/s - 60°/s

Features

36X optical zoom PTZ camera
Concise English menu，fully compatible with XIONGMAI AHD recorder, PTZ operation functions can be used directly
IR Distance up to 200M

Specifications

Pan Range360°
Tilt Range90°
Pan control
speed		0.05º-220º/s
Tilt control speed0.05º-120º/s
Preset speedPan：220°/s tilt：120°/s
Preset255
Input / output interfaces
Video output1-channel BNC
ProtocolPELCO-D/P(auto recognition)
Electrical parameters
Power supplyDC12V/4A
Infrared   parameters6 infrared LED+  2 TAIWAN VCSEL
IR distance200m
Power consumption21W max
Weight4.6kg
General
Working environment-40ºC ～ +70ºC/less than 90% RH
Ingress protectionIP66
 CE、FCC  ROHS

Camera features

Resolution1280*720
Image sensorSONY IMX238
Signal  systemAHD
S/N Ratio> 47dB
Dynamic range73.3dB
zoom18X optical zoom(4.7±10%~84.6±10%mm)auto focus
Focus distance0.01m(W) / 1.0m(T)
Angle of view49.6°(W) ~ 2.5°(T)
Min illuminationColor 0.1/black&white0.01LUX
Video outputHD AHD 1.0Vp-p(75Ω/BNC)
Control modeFPP 9PIN
ProtocolVISCA,baud 9600bps PELCO-D/P,baud 2400
MenuChinese，English
AE modeauto/manual/keying
Electronic shutter

Auto/manual 1/50 ~ 1/10000s

Gain controlauto/manual1-7 level can be selected(5~30db)
White balanceauto/auto tracking white balance mode /automatic detection setting mode/Indoor mode/outdoor mode/manual white balance
Motion DetectionSupports four custom window  for motion detection and alarm functions
Privacy maskingSupports four custom window  for(Color / Mosaic / negative display mode, etc.)
BacklightOFF/BLC/Light inhibition
WDROFF/ON/AUTO
Defogthe defog area ande defog level can be set
NR2D&3D NR(Noise Reduction
Image adjustmentSharpness / Edge brightness compensation / Mirror Set / image freeze / image features such as negative; in addition you can define the display mode (CRT / LCD)
Address0-255
Day & NightAuto / color / monochrome mode; automatic synchronization function IRCUT
Supplied voltageDC12V ± 20%
Dimension89.1×50.1×60mm
IR-CUT

Built-in IR-CUT ,optional auto/ day / night

omv-805g13ah
