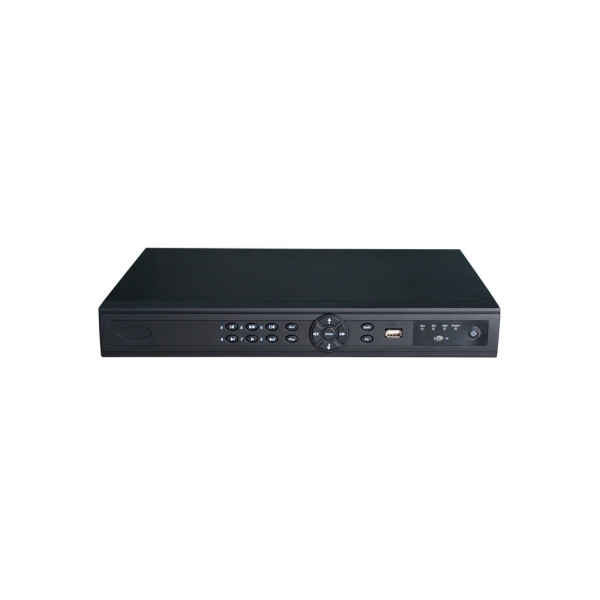

OMV-1601

Hybrid 16CH 1080P TVI DVR

Special functionP2P functionUsing Device ID and password to login www.vssweb.net;
Realize remote monitoring, playback and control like IE Web login.
No need any network, IP setting, easy for end user to use network function.
Cloud StorageSupport Dropbox and Google Drive.
SystemOperation SystemEmbedded LINUX
Pentaplex function Live monitoring, recording, playback, backup & remote access
Control ModeUSB mouse,Network
VideoCVBS/TVI input
(Up to 1080P)		16 ch. BNC（1.0Vp-p,75ohms）
TVI support Coaxitron
Output1 CVBS, BNC (1.0Vp-p,75 ohms)
1 HDMI,  1.3a,support 1920×1080 Resolution
1 VGA,1920×1080,1280×1024,1366×768,1280×720,1024×768  Resolution
AudioInput 1 ch. RCA(Line in,2Vpp,1Kohms)
Output1 RCA (Line out,2Vpp,300ohms)
Two-way Talk1st. channel reuse
DisplayResolution1080P(25/30fps), 720P(25/30/50/60fps),960H, D1
Tour DisplaySupport
Privacy MaskingFour zones for privacy masking for each channel
RecordingVideo CompressionH.264 HP4.2
Audio CompressionG.711A
Image EncodingAdjustable encoding quality, variable code stream/fixed code stream
Dual StreamSupport
Max compression Ability16ch.1080P@15FPS or 16ch. 720P@30FPS
Recording ModeManual, auto, motion detection, stop
Video Detection & AlarmTrigger EventsRecording, PTZ, Tour,Email
Motion Detection396 (22×18) detection zone, variable sensitivity levels
CaptureJPEG capture
Alarm Input/
Alarm Output/
Playback&BackupSync Playback16ch.960H or 16ch.720P@30fps or 16ch.1080P@15fps
Backup ModeUSB,HDD,Network Backup
NetworkEthernet1 RJ-45 port (10M/100M/1000M)
Network protocolTCP/IP, UDP, HTTP, RTP/RTSP
Network Functions DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G,WiFi
Remote OperationMonitoring,playback,system setting,file download,log information
Smart PhoneiPhone,iPad,Android,Blackberry,Windows Mobile
Hard DiskHard Disk2 SATA ports,each SATA supports 4TB
HDD ManagementHard disk hibernation technology, HDD faulty alarm
Auxiliary InterfaceUSB Interface2 USB 2.0 ports
EnvironmentPower SupplyDC +12V/4A
Power Consumption20W (without HDD)
Working Environment0℃~＋55℃  /  10%－90%RH
Dimension(W*D*H)1U,360x260x48mm(W*D*H)
Weight2Kg (without HDD)
InstallationDesk type
