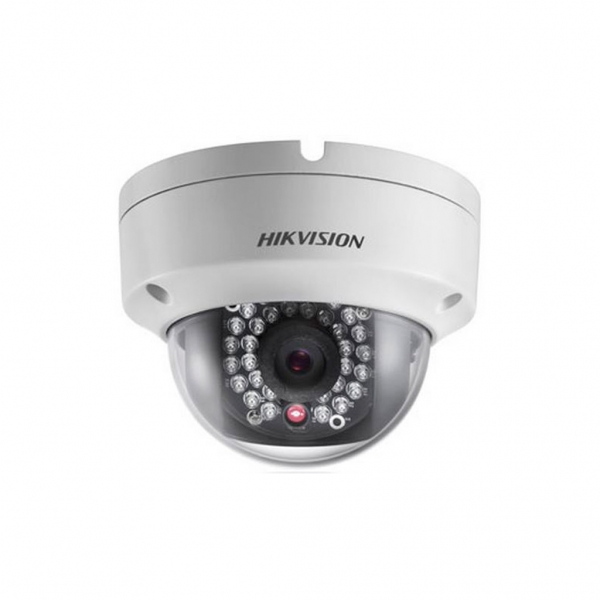

DS-2CD2120F-I

Hikvision 2.0MP Dome IPC Full
HD, 3D DNR, DWDR

Features:

  • Up to 2 megapixel (1920 × 1080) resolution
  • Standard video compression with high compression ratio, ROI (region of interest) encoding
  • Progressive scan CMOS, capture motion video without incised margin
  • Support dual stream, and the sub-stream for mobile surveillance
  • High-performance and long service life Infrared LED, up to 30 meters IR range
  • IR cut filter with auto switch
  • PoE (Power over Ethernet)
  • 3D DNR
  • Ingress Protection level: IP67
  • Electronic shutter for different surveillance environments
  • Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
  • Other functions: alarm, mirror, etc
  • Support intrusion detection and line crossing detection
  • Support VCA, which is compatible with NVR for the second time of video searching and analysing

Specification:

Camera
Image Sensor1/2.8" Progressive Scan CMOS
  Min. Illumination0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
  Lens4mm@ F2.0, Angle of view: 85° (2.8mm, 6mm optional)
Lens MountM12
Day &NightIR cut filter with auto switch
Digital Noise Reduction  3D DNR
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan:0° - 355°, Tilt: 0° - 65°
Compression Standard
Video CompressionH.264/ MJPEG
H.264 TypeBaseLine Profile/Main Profile
Video Bit Rate32 Kbps – 8 Mbps
Dual StreamYes
Max. Resolution1920 x 1080
  Max Frame Rate50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Sub Stream50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576)
  Image SettingsRotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Backlight compensation  Yes, zone optional
ROISupport
Network
Network StorageNAS (Support NFS,SMB/CIFS)
  DetectionLine crossing detection, Intrusion detection, Motion detection, Dynamic analysis
  Alarm TriggerTampering alarm, Network disconnect , IP address conflict, Storage exception
  ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
  GeneralAnti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
StandardONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface  1 RJ45 10M/100M Ethernet interface
General
Operating Conditions-30 °C – 60 °C (-22 °F – 140 °F)
 Humidity 95% or less (non-condensing)
Power Supply12 V DC ± 10% , PoE (802.3af)
Power ConsumptionMax. 5.3W
MaterialBase: Metal; Top Cover: Plastic
Ingress Protection level  IP67
IR Range30 meters
Impact ProtectionIEC60068-2-75Eh, 20J; EN50102, up to IK10
DimensionsΦ111 × 82 (4.4” × 3.2”)
Weight500g (1.1 lbs)

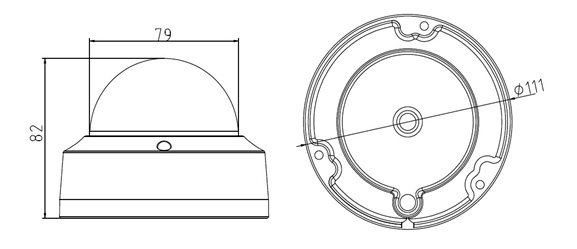

Dimensions:

DS-2CD2120F-I
