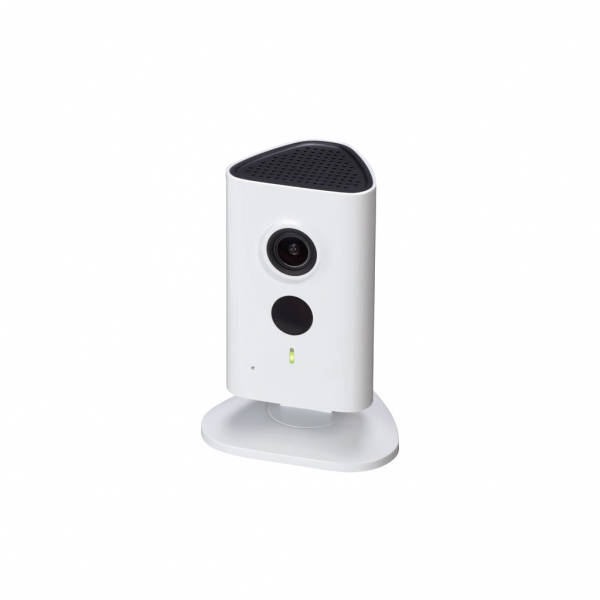

DH-IPC-C35

3M mic sd wi-fi 2 mm

Features:

  • 1/3” 3Megapixel CMOS
  • H.264/MJPEG dual-encoding
  • Max 20fps@3MP(2304× 1296)&25/30fps@1080P(1920× 1080)
  • IR 10m
  • 120° horizontal view angle
  • Easy4ip cloud support
  • Wi-Fi support
  • Micro SD card, up to 128GB
  • Built-in Mic & Speaker
  • DC5V1A

Specifications:

Camera
Image Sensor1/3” 3Megapixel CMOS
Effective Pixels2304(H)x1536(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000
Min. Illumination0.9lux/F1.2(color),0lux/F1.2(IR on)
S/N RatioMore than 50dB
Video OutputN/A
Camera Features
Max. LEDs Length10m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Lens
Focal Length2.3mm
Max ApertureF1.2
Focus ControlManual
Angle of ViewH: 120°
Lens TypeFixed Lens
Mount TypeBoard-in Type
Video
CompressionH.264/H.264B/H.264H/MJEPG
Resolution3MP(2304×1296)/1080P/720P/VGA/QVGA
Frame RateMain Stream3MP(1~20fps)/1080P/720P(1~30fps)
Sub StreamVGA/QVGA(1~30fps)
Bit RateH.264: 32Kbps～8Mbps
Audio
CompressionG.711A;G.711Mu;AAC
InterfaceBuilt-in Mic/Speaker
Network
EthernetNA
Wi-FiWi-Fi(IEEE802.11b/g/n) 50m(open field)
ProtocolIPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS
CompatibilityONVIF CGI
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, up to 128GB
RS485N/A
AlarmN/A
PIR Sensor RangeN/A
USBMicro USB
General
Power SupplyDC 5V
Power Consumption<4.6W
Working Environment-10°C~+45°C, Less than 95%RH
Ingress ProtectionN/A
Vandal ResistanceN/A
Dimensions(W×D×H)76mm*65mm*107mm
Weight0.14Kg(0.36Kg with package)

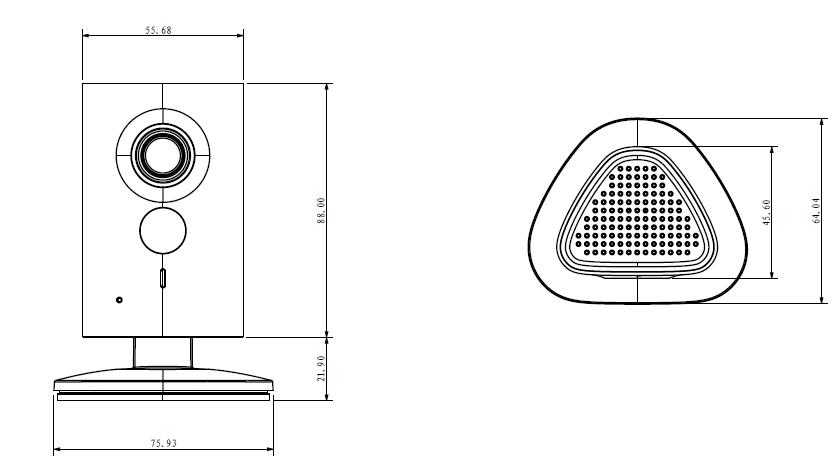

Dimensions:

DH-IPC-C35
